AS-TOP cu by-pass

Constructie: separator cu by-pass (b), cu deznisipator si separator coalescent
Amplasare: in spatiu uscat, apa freatica sa fie sub radier
Deznisipator: 100 x debit nominal
Incarcare influent: max. 200 mg/l substante petroliere
Incarcare efluent: max. 5 mg/l substante petroliere, pentru apa filtrata
Forma: dreptunghiulara, tip ER
Design: bazin din polipropilena fara portanta proprie, pentru betonare tip PPn
Statica: fara portanta proprie, separatorul se betoneaza folosind containerul acestuia ca si cofrag interior

Tip	Debit nominal	Debit maxim  (1:5)	DN	Lungime	Latime	Inaltime	Cota intrare	Cota iesire	Desene
		l/s	mm	mm	mm	mm	mm	mm	pdf	dwg
AS-TOP 15/75 RCk/ER/PPn/b	15	75	250	1500	1660	2160	1480	1330	15/75	15/75
AS-TOP 20/100 RCk/ER/PPn/b	20	100	300	1500	2160	2160	1480	1330	20/100	20/100
AS-TOP 30/150 RCk/ER/PPn/b	30	150	400	2000	2160	2160	1480	1330	30/150	30/150
AS-TOP 40/200 RCk/ER/PPn/b	40	200	400	2500	2160	2160	1480	1330	40/200	40/200
AS-TOP 50/250 RCk/ER/PPn/b	50	250	500	2500	2160	2160	1480	1330	50/250	50/250
AS-TOP 65/325 RCk/ER/PPn/b	65	325	500	3500	2160	2160	1480	1330	65/325	65/325

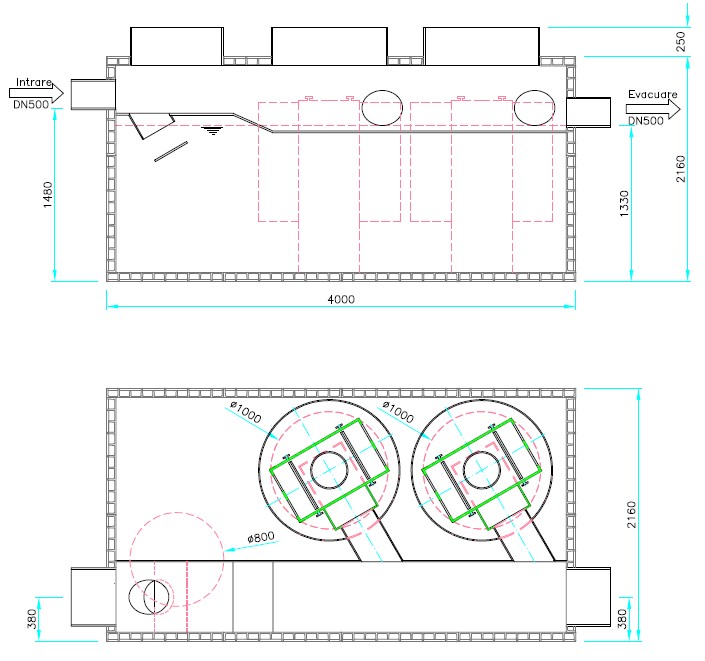

AS-TOP 80/400 RCk/ER/PPn/b	80	400	500	4000	2160	2160	1480	1330	80/400	80/400
AS-TOP 100/500 RCk/ER/PPn/b	100	500	500	6500	2160	2160	1480	1330	100/500	100/500
AS-TOP 125/625 RCk/ER/PPn/b	125	625	600	8000	2160	2160	1480	1330	125/625	125/625

Tip	Debit nominal	Debit maxim  (1:10)	DN	Lungime	Latime	Inaltime	Cota intrare	Cota iesire	Desene
		l/s	mm	mm	mm	mm	mm	mm	pdf	dwg
AS-TOP 15/150 RCk/ER/PPn/b	15	150	300	1500	1660	2160	1480	1330	15/150	15/150
AS-TOP 20/200 RCk/ER/PPn/b	20	200	400	1500	2160	2160	1480	1330	20/200	20/200
AS-TOP 30/300 RCk/ER/PPn/b	30	300	500	2000	2160	2160	1480	1330	30/300	30/300
AS-TOP 40/400 RCk/ER/PPn/b	40	400	500	2500	2160	2160	1480	1330	40/400	40/400
AS-TOP 50/500 RCk/ER/PPn/b	50	500	500	2500	2160	2160	1480	1330	50/500	50/500
AS-TOP 65/650 RCk/ER/PPn/b	65	650	600	3500	2160	2160	1480	1330	65/650	65/650
