AS-TOP RCk/ER/PPs


Constructie: combinat, deznisipator si separator coalescent
Amplasare: in spatiu necarosabil, apa freatica sa fie sub radier
Deznisipator: 100 x debit nominal
Incarcare influent: max. 200 mg/l substante petroliere
Incarcare efluent: max. 5 mg/l substante petroliere
Forma: dreptunghiulara, tip ER
Design: bazin din polipropilena cu portanta proprie, tip PPs
Statica: cu portanta proprie, fixare in spatiu verde, spatiul ramas se umple cu pamant de umplutura





Tip
Debit
maxim
Diametru
nominal
racorduri

Lungime

Latime

Inaltime
Inaltime
racord
intrare
Inaltime
racord
evacuare

greutate

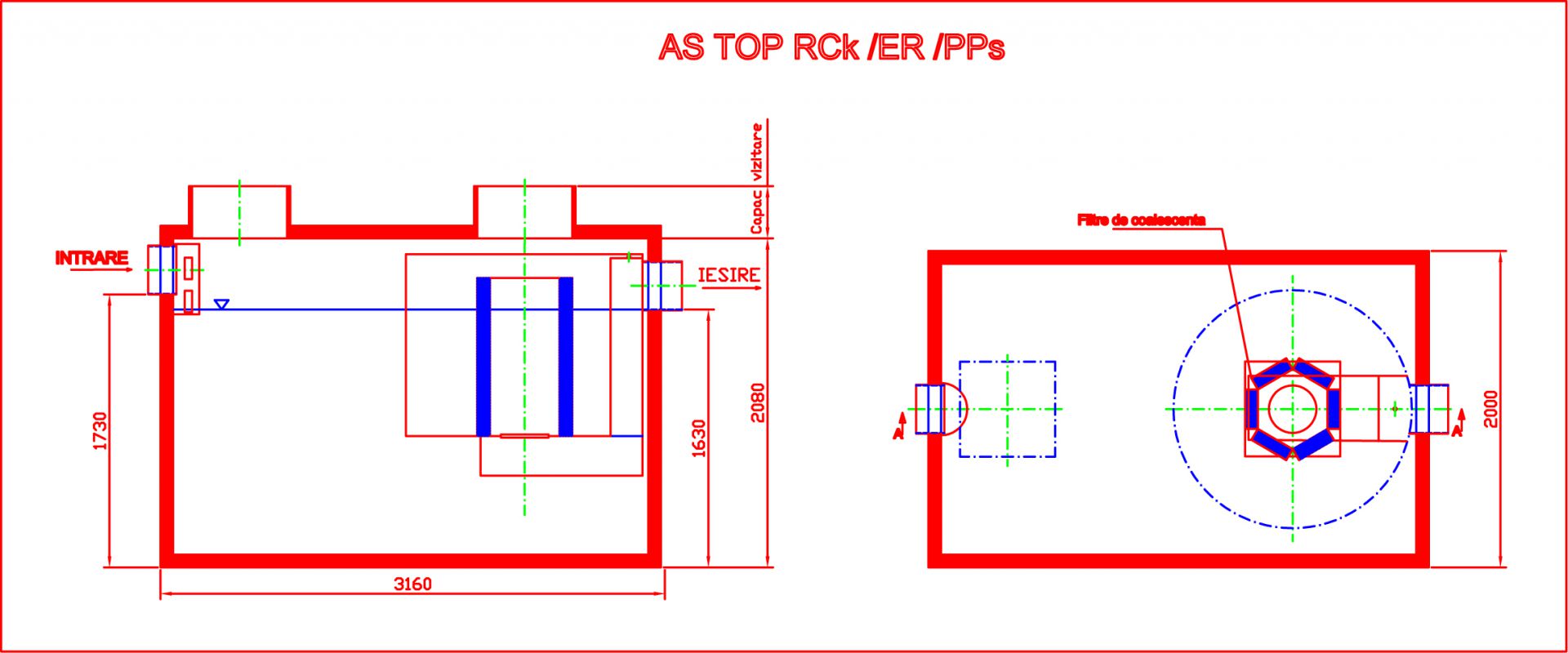

Desene
  Q DN L B H Hv Ho
  l/s mm mm mm mm mm mm kg pdf dwg
AS-TOP 15 RCk/ER/PPs 15 200 2160 1500 1660 1330 1230 490 15 15
AS-TOP 20 RCk/ER/PPs 20 200 2160 1500 1660 1330 1230 490 20 20
AS-TOP 30 RCk/ER/PPs 30 250 3160 1500 1660 1280 1180 660 30 30
AS-TOP 40 RCk/ER/PPs 40 300 3160 2000 1660 1230 1130 780 40 40
AS-TOP 50 RCk/ER/PPs 50 300 3500 2160 1660 1230 1130 940 50 50
AS-TOP 65 RCk/ER/PPs 65 300 3160 2000 2160 1730 1630 970 65 65
AS-TOP 80 RCk/ER/PPs 80 300 3500 2160 2160 1730 1630 1130 80 80
AS-TOP 100 RCk/ER/PPs 100 300 4160 2400 2160 1730 1630 1390 100 100
AS-TOP 125 RCk/ER/PPs 125 400 5160 2400 2160 1630 1530 1630 125 125
AS-TOP 150 RCk/ER/PPs 150 400 5160 2000 2660 2130 2030 1730 150 150
